Windows interface

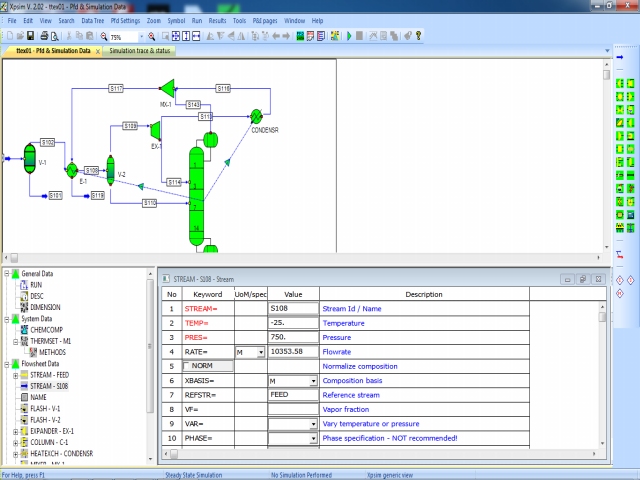

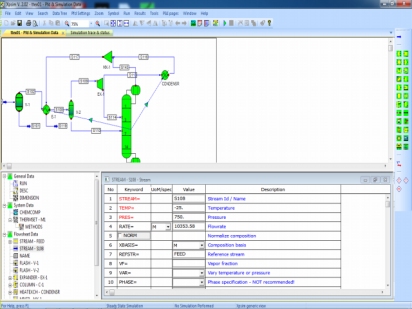

XPSIM provides an intuitive and simple windows interface.

Similarly to other simulators the user can draw the process flow diagram and enter data.

The use of dialog boxes with tabs is limited to a minimum; statements data are supplied in a linear and straightforward manner in the statement window

For more detailed information you may download the complete "XPSIM - Windows Interface User's Manual" from "Downloads" page

Easy PFD navigation

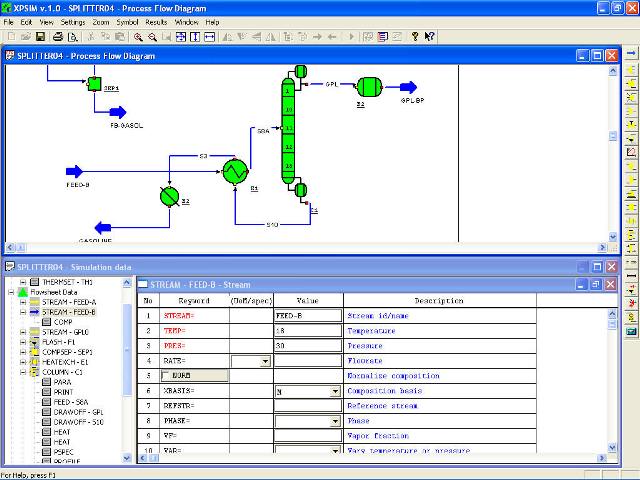

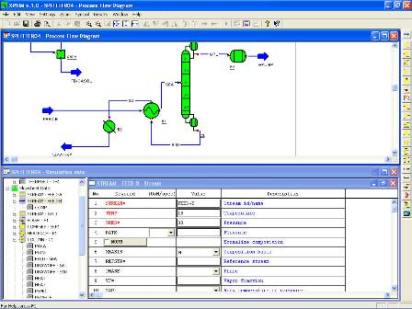

XPSIM interface allows an easy navigation through the process flow diagram also for large schemes.

The user can locate data from the pfd or locate the pfd symbol from the simulation data tree.

PFD print preview

The pfd can be easily previewed and printed using A4, A3 or even larger page sizes.
